識別產品Microscan邁思肯掃描器歡迎來電咨詢Microscan邁思肯掃描器價格和型號：020-87030040。

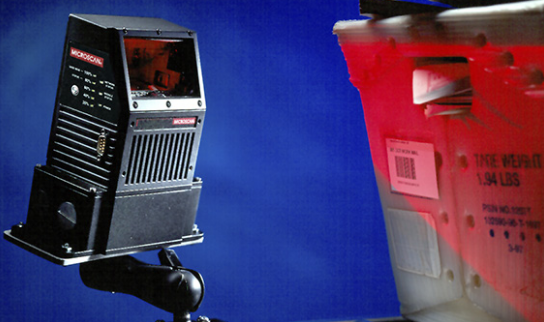

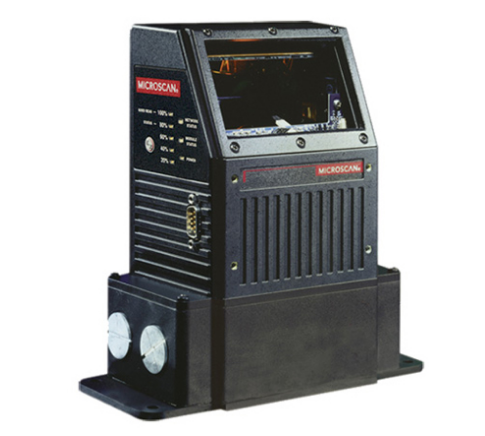

MS-890是一種重型掃描器，具有極高的靈活性，用于在各種工廠條件下解決大量實際應用.它具備經擴展的讀碼范圍以及智能掃描光柵，為線性條碼以及堆棧標簽提供了強大的讀取功能.

多功能和堅實的設計，使MS-890成為理想的工業用掃描器.

讀碼范圍廣：MS-890成功應用于讀取不同距離的條碼，如輸送機或裝配區域的安全或間隙區.

可見指示燈：MS-890的照明鏡頭在成功讀碼后會提供即時的可視化確認.在掃描時的前窗360度角內可看到“成功讀碼的綠燈指示”。

可選接線盒*IB-890接線盒提供簡單和靈活的集成，無需任何特殊電纜或連接器.

功能包括：

以太網(可選MS-連接210)
可插入繼電器模塊
端子板連接
可連接手持掃描儀

智能光柵：MS-890智能光柵功能可以在讀取多個條碼或放置標簽不一致時優化掃描角度和速度.

自動校準：自動校準功能可以自動確定和選擇良好的聚焦，獲得和跟蹤掃碼設置。

條碼編程：改變掃描器的工廠配置很簡單，只需放置條形碼然后按下EZ按鈕.通過這個功能很容易在不同的MS-890上做同樣的設置.

邁思肯MS-890工業用掃描器型號表
Part Number	Description
FIS-0890-0001G	Long Range, Stand Alone Version, RS-232/485, 10-28 VDC
FIS-0890-0002G	Long Range, Wiring Box Ready, RS-232/485, 10-28 VDC

艾韋迅IVYSUN是Microscan邁思肯掃描器的中國區核心經銷商，貨源充足、確保正品。專業的Microscan邁思肯掃描器產品技術服務團隊，確保您采購使用無后顧之憂！購買國際品牌掃描器，請認準技術型服務商：艾韋迅IVYSUN (http://www.xdsws.cn)。

邁思肯MS-890工業用掃描器特點

IP65 封裝
自動校準
讀碼范圍廣
智能光柵
可見指示燈
條碼編程

邁思肯MS-890工業用掃描器配件表
Part Number	Description
FIS-0210-0001G	MS-Connect 210, Connectivity Box with Display
FIS-0210-0002G	MS-Connect 210, Connectivity Box
FIS-0210-0003G	MS-Connect 210, Connectivity Box with Display and Ethernet
FIS-0210-0004G	MS-Connect 210, Connectivity Box with Ethernet
98-000013-04	Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890
98-000013-05	Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
98-000013-06	Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
61-000122-01	Cable, To MS-Connect 210, Host RS-422/485 for Multidrop, 6 ft
61-000123-01	Cable, To MS-Connect 210, Host/AUX RS-232, for Daisy Chain 210 to 210, 6 ft
FIS-0001-0030G	IB-3PC Keyboard Wedge/Interface Box
98-000039-02	Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer
98-000040-02	IB-150 Interface and reader cable, 6 ft
98-000051-01	USB Conversion Kit, IC-3USB
61-000034-02	Cable, Comm/Serial , 25pin Socket to 9pin Socket, 6 ft
61-100029-03	Cable, Connects IB-150 to IB-150, 1 ft , Daisy Chain
61-000010-02	Cable, Communication, DB-9 Socket to DB-9 Socket, 6 ft
98-000011-01	Glass Window Replacement Kit
98-000011-02	Plastic Window Replacement Kit
61-000154-01	Daisy Chain/Comm Adapter
Wiring Box
99-420003-04	IB-890 Wiring Box (use w/FIS-0890-0002G)
98-000013-04	Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM
98-000013-05	Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM
98-000013-06	Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM
12-000130-01	CGB’s (sealed strain relief wire clamp)
Power Supply
97-100004-15	Power Supply, 90-264 VAC,+24VDC USA /Euro Plug (only use with IC-332)
Mounting and Connectors
98-000017-01	Mounting Arm/Adapter Kit, IB-890/FIS-0880-0002, 6 inch
98-000018-01	Mounting Arm/Adapter kit, MS-890, 6 inch
98-000046-01	Kit, Base Plate
98-200037-01	Standard Flat Mounting Plate Kit, MS-890, Custom Surfaces
20-610024-01	Trigger Connector, 4-pin Plug (screw terminal and field wireable) (for self wiring)
20-610020-01	Power Connector, 3-pin Socket (screw terminal and field wireable) (for self wiring)
Package Detector/Sensor
99-000017-01	Photo Sensor, Visible, NPN, DARK ON
99-000017-02	Photo Sensor, Visible, NPN, LIGHT ON
99-000004-01	Package Detector, Standard Diffuse, 120 inch Range, 4-pin Plug
99-000004-02	Package Detector, Standard Diffuse, 120 inch Range, Unterminated
Software/Manuals
37-000001-01	TOOLS CD, User’s Manuals, ESP Software

邁思肯MS-890工業用掃描器應用：

輕工業到重工業

升降機或傳送帶

工廠

規格表

邁思肯MS-890工業用掃描器特點

邁思肯MS-890工業用掃描器應用：
